Tooling

Gasbarre provides precision tooling capable of tolerances to one ten-thousandth of an inch, built by quality and well-maintained tools combined with skilled operators and superior knowledge of process and materials.

Call For A Custom Quote!

• Manufacturers of PM Tooling since 1943

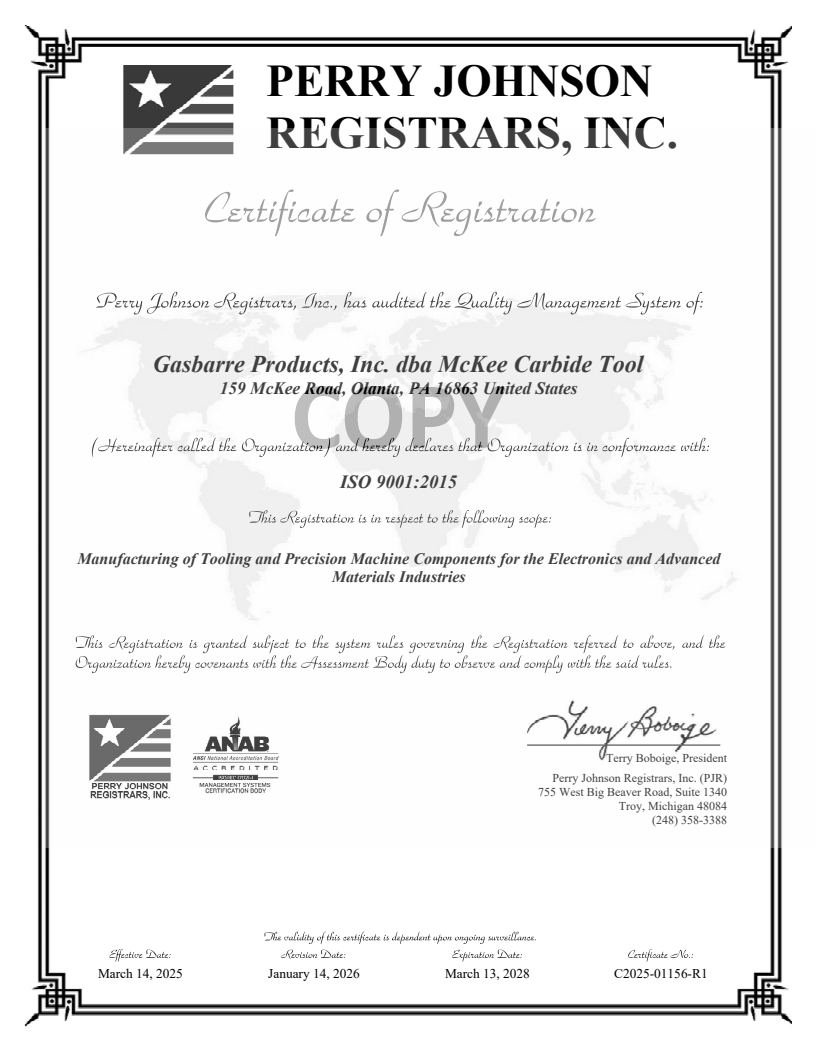

• ISO 9001:2015 Certified
• Tool design and build from part print
• Gears, sprockets & helical gear tooling
• Other unique forms
• All makes of molding and sizing presses.
• Tonnage range: 2T – 1,650T
• Warm forming design for double press, double sinter
• Assistance with design concepts
• On-line design review & collaboration

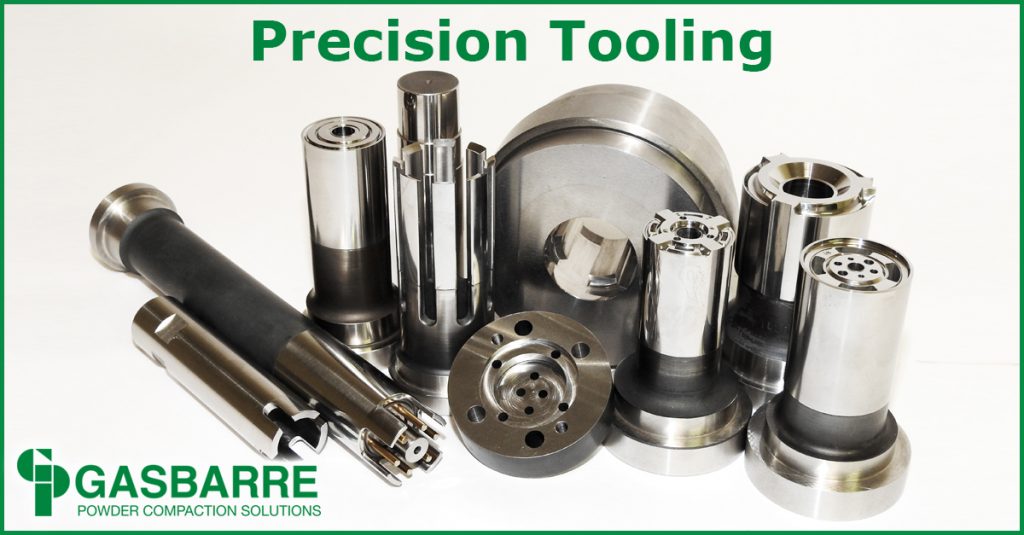

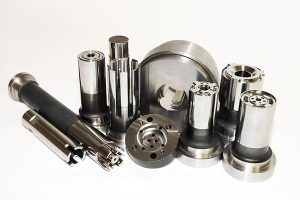

• Punches and dies for powder compacting industry
• Miniature compacting tooling for precision electronic components
• Jigs, fixtures and wear parts for automated electronic assembly machinery
• Indexing systems, probes, jigs and fixtures for electronic testing
• Punches and dies for stamping applications
• Dies and core tooling for plastic injection molding

Production Capabilities

• Roughing: to 24” diameter
• Grinding, Manual & CNC: to 24” diameter x 18” length
• Sinker and Wire EDM: to 24” diameter x 18” length

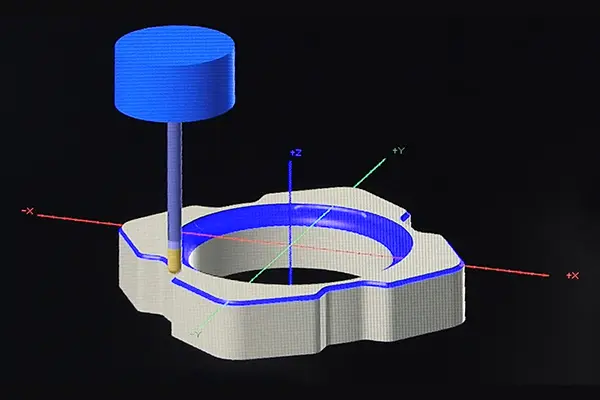

• High Speed Milling
  • X = 24” x Y = 36”  x  Z= 18”
  • Up to 32k RPM Spindle
  • 4^thAxis Capability
• Hard Turning
• Polishing
  • Controlled environment
  • Ultrasonic polishing
  • High Speed Diamond Polishing

Inspection Capabilities

• Brown & Sharpe CMM
  • Equipped with pc∙dmis
  • Full scan capability
• Contour Tracer
• Smart Scopes
• Traditional Equipment
• Calibrated to ANSI
• Profilometer

View Gasbarre’s Tooling Brochure

Email Us Now About Gasbarre Tooling

Call Today @ 814.236.3108
