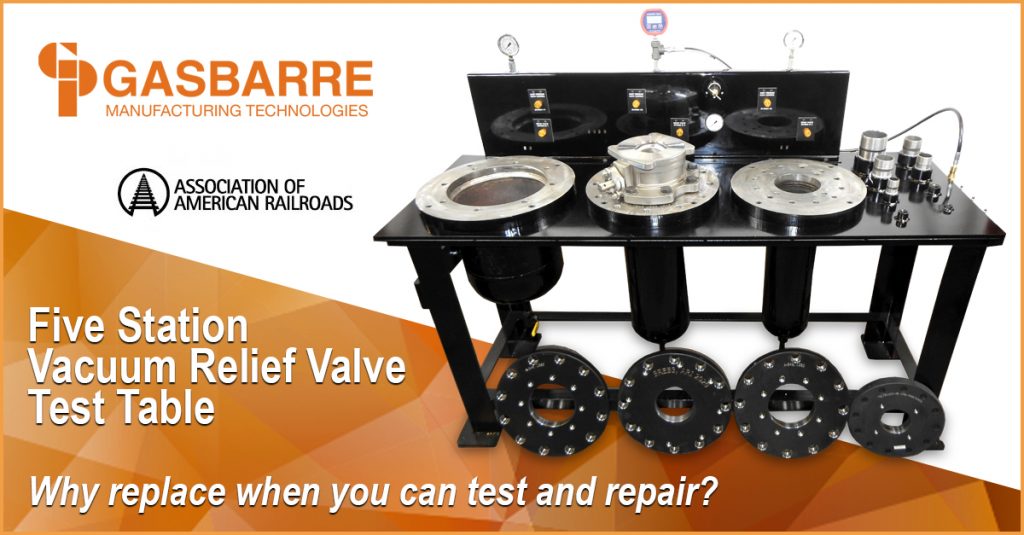

Gasbarre has custom designed and engineered a 5 station vacuum relief valve test table that will fulfill requirements of AAR Manual of Standards and Recommended Practices Section C-I11 and various vacuum relief valve operations/maintenance guidelines, which require vacuum relief valves to be tested under vacuum and positive pressure to ensure proper operation after a repair or maintenance event.

Our Test Table is EASY TO USE! Here’s why!

Install valve and open ball valve to that station

PRESSURE TEST

Pull control handle forward to pressurization station
Release handle to hold pressure
Check for leaks
Push handle back to release pressure

VACUUM TEST

Start vacuum pump
Pull control handle forward until relief valve opens
Release handle to hold vacuum
Push handle back to release vacuum

Here are some of the amazing features that come with this unique mobile solution!

5 removable, interchangeable and replaceable vacuum relief valve stations
3-way mechanical valves to control vacuum and pressure independently
Independent flow controls and shut-off valves for each station
0-200 psi pressure gauge*
0-15 PSI VAC {0-25 In-Hg} vacuum gauge*
120V AC power supply with disconnect switch, wash down enclosure
Vacuum pump inside filter housing with replaceable 12″ x 12″ furnace filter
Steel frame construction

*All gauges meet 04.5 Test Gauge Standards

Please give us a call if you would like to learn more about where we are going. Call (814.371.3015) or email ([email protected]) ustoday!

Are you sick of replacing relief valves to meet AAR Manual of Standards without proper testing? Well Gasbarre has the perfect MOBILE test valve table solution for you!
