Gasbarre Products Inc. offers two styles of sizing presses to meet the needs of a wide range of parts. Inclined Automatic Sizing Presses and Upright Automatic Sizing Presses.

Standard Series Powder Compaction Presses

The GASBARRE Standard Series Press offers a rugged design that includes a rigid mount die set.  In its basic configuration the Standard Series Press is supplied with a single lower level die set complete with a floating die plate, gib-guided upper ram, precision-guided upper punch mount, adjustable speed drive, adjustable tool positioning, automatic die filling system, and complete operator protection guarding.  The base configuration is capable of making a number of simple part configurations.  However, a wide range of options are available to allow the end user to manufacture a wide range of components, from simple to complex configurations.  The pragmatic design scheme allows for quick and efficient tool design.  As well, straight-forward tool and die setting offered by the generous open area in the press and die set.

Gasbarre STD-0060 (60 Ton)

Pictured is the actual machine complete at Gasbarre’s factory.

This Press Features The Following Options:

  • Presslog Control System
  • Tonnage Monitor
  • Underfill
  • Top Punch Hold Down
  • Pneumatic Up/Down Float Core Rod
  • Pneumatic Head with Inner Punch
  • Air Outlet
  • Die Area Light
  • Fill Safety
  • Fill Shoe Retract Safety

Status:  COMPLETE

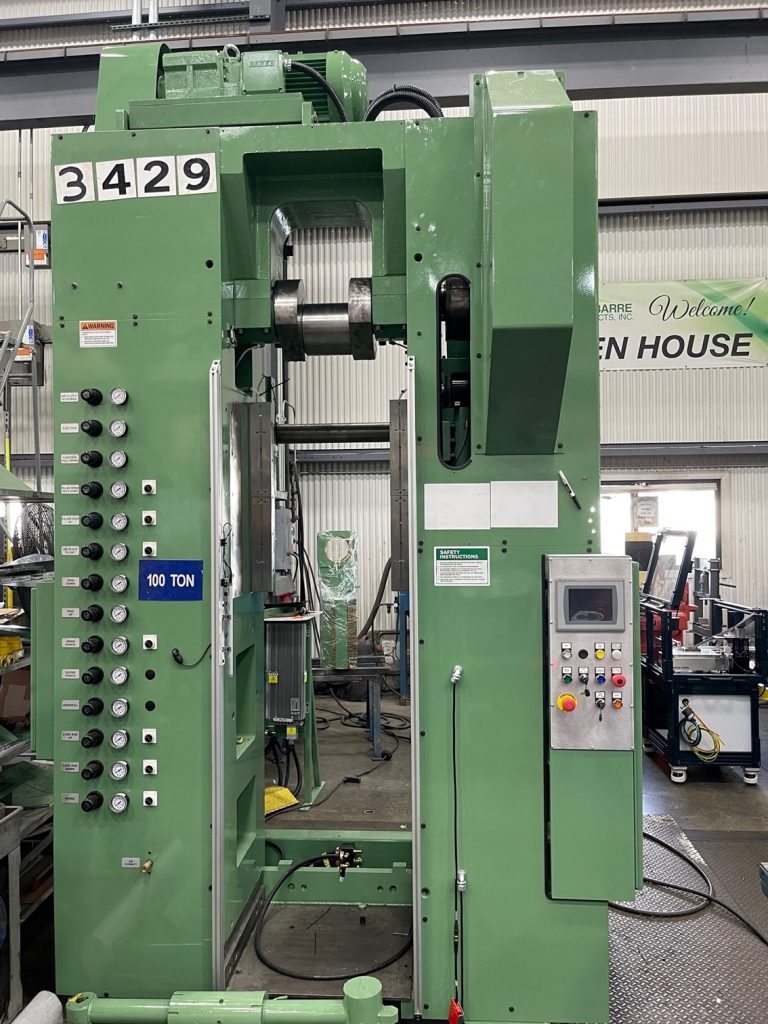

Gasbarre STD-0100 (100 Ton)

Pictured is the actual machine in-progress at Gasbarre’s factory.

This Press Features The Following Options:

  • Presslog Control System
  • Tonnage Monitor
  • Underfill
  • Top Punch Hold Down
  • Pneumatic Up/Down Float Core Rod
  • Pneumatic Head with Inner Punch
  • Air Outlet
  • Die Area Light
  • Fill Safety
  • Fill Shoe Retract Safety

Status:  90% COMPLETE

THX Series CNC Hydraulic Powder Compaction Presses
Our cnc hydraulic presses are manufactured in capacities from 15 tons to 1,200 tons for single-level or multi-level parts for carbides, ceramics, powder metals, polymers and other particulate material industries. Gasbarre’s computer numerical control (CNC) hydraulic presses are optimized for reliable and lasting service with numerous innovative features and application capabilities.

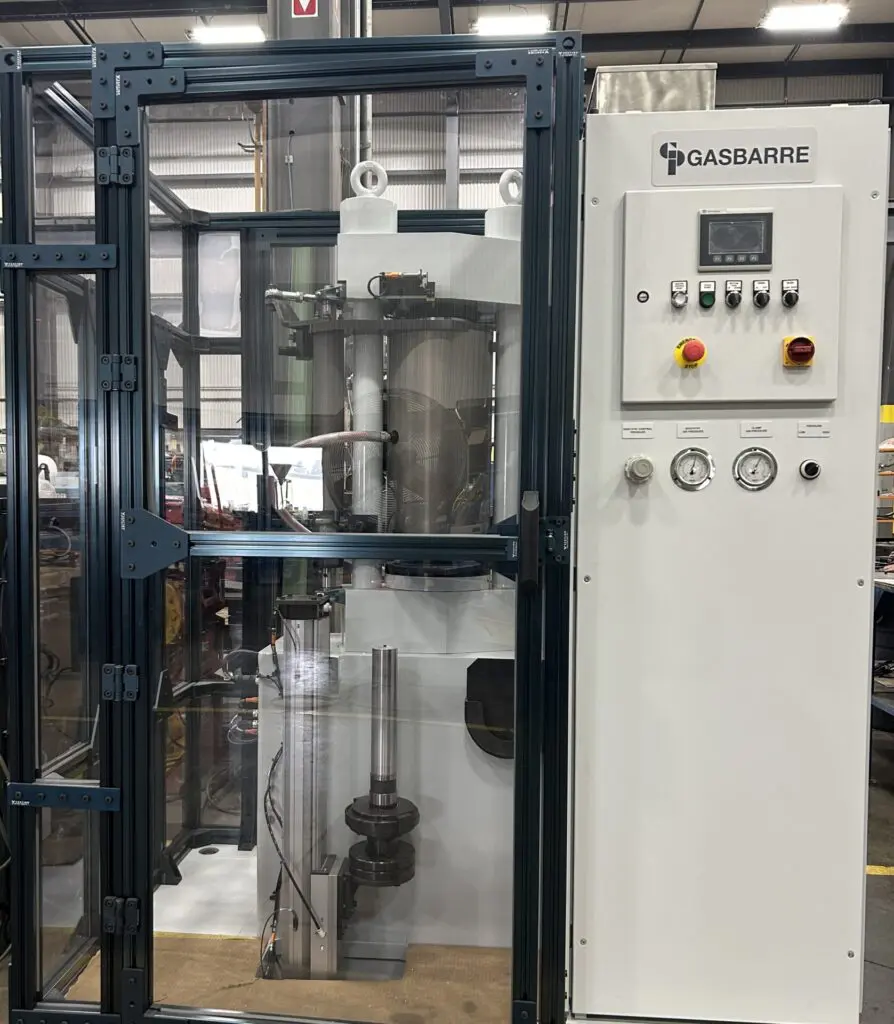

Gasbarre THX-0550-2-2 (550 Ton)

Gasbarre Powder Compaction Solutions - Hydraulic Press
Pictured is a representative machine

A summary of the press configuration follows:
  1) Press motions:
      a. #1 Upper ram ‐‐closed‐loop controlled CNC servo‐hydraulic
      b. #2 Upper ram ‐‐ closed‐loop controlled CNC servo‐hydraulic
      c. Die (main lower ram) – closed‐loop controlled CNC servo‐hydraulic
      d. #1 Lower ram – closed‐loop controlled CNC servo‐hydraulic
      i. #2 Lower is a stationary mount
      e. Core rod ram – closed‐loop controlled CNC servo‐hydraulic
      f. Closed‐loop controlled CNC servo‐electric fill system/sizing feed                 system ram
  2) Rigid mounted die set
  3) Other items:
      a. Die filling system
      b. Indexing part feed system
  4) Controls & safety:
      a. HMI touchscreen control interface
      b. PLC control with Safety PLC
      c. Two hand start buttons with emergency palm button
      d. Pneumatic system with control valves and pressure regulators
      e. Interlocked barrier guards

Status:  70% COMPLETE
