Continuous Vacuum

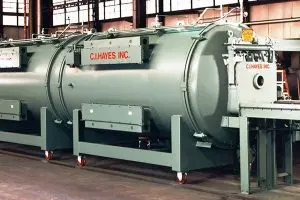

The CI Hayes VBQ Vacuum Furnace is part of the modular furnace family designed for heat treating and or carburizing applications.  It typically combines a vacuum heating chamber with an oil quench or gas quench chamber.  It is unique for a vacuum furnace in that the heat chamber is designed to be exposed to air at elevated temperatures.  It uses ceramic insulation, ceramic heating elements, and a high nickel alloy hearth assembly that is resistive to oxidation.  Once work is loaded, the heat chamber is immediately evacuated such that the work does not oxidize as it begins to heat.

The VBQ heat chamber may be used for processes to 2000F including carburizing and hardening.  It may also act as a preheat chamber, preceding and be combined with a graphite chamber (separated by a vacuum door) for higher purity and/or higher temperature applications.

Metallurgical Processes

View Gasbarre’s Carburizing Furnace Brochure

6 Advantages of Continuous Vacuum Processing vs. Standard Alternatives

  1.   Higher Throughput & Utilization
    • Loading and unloading a continuous vacuum furnace does not interfere with processing and can be accomplished simultaneously. Several loads can be staged at once reducing the attention required from operators. Automatic indexing eliminates the need to program every batch which improves quality control.

  2.   Improved Thermal Efficiency
    • In a batch vacuum furnace, the entire insulation assembly must be heated and cooled every cycle. In addition to adding significant energy costs, this increases the time required to thermally soak the workload and slows down quenching. Because the heating portion of a continuous vacuum furnace is held at temperature, only the mass of the work is heated and cooled. This reduces energy consumption and cycle time while also eliminating losses from nozzles and openings required for cooling.

  3.   Higher Purity
    • Because the heating portion of a continuous furnace is held under vacuum and at temperature, gas development rates from outgassing and desorption are allowed to decay to very low levels. This reduces contamination from atmospheric moisture and allows for a purer environment without the need to bakeout the furnace between cycles.

  4.   Reduced Maintenance
    • Another significant advantage of continuous vacuum processing is reduced thermal wear on consumable refractory materials. Thermal cycling leads to ratcheting, distortion, and premature oxidation. The intrinsic thermal stability and purity of a continuous vacuum furnace reduces spare part cost and maintenance down time.

  5.   Improved Part Repeatability
    • Because of the larger loads required to achieve production rates in a batch vacuum furnace, it can be difficult to achieve thermal uniformity during transient heating and cooling. The reduced load size in a continuous vacuum furnace means that parts experience a much more uniform thermal profile without sacrificing throughput.

  6.   Improved Scalability & Work Handling Integration
    • Smaller load sizes reduce the footprint required to load and unload the furnace. Small loads are easier to maneuver and align making continuous vacuum an ideal choice for integration with automated production facilities without sacrificing throughput.
