Electric Presses

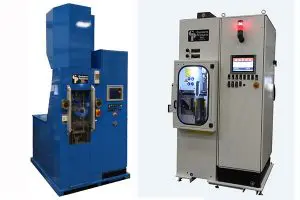

The Gasbarre Electric Press provides precise compaction of powder into a wide variety of geometries. High-efficiency and high-precision drives control the motion of the upper ram, die plate, and automatic die filling systems. Each axis of the press is freely programmable for complete control of the compaction cycle: die filling, upper punch motion/compaction, die motion, and ejection cycle. Movement of the press axes are performed by closed-loop control. Extreme precision and repeatability are the result.

KEY FEATURES

• Closed-loop controlled electric upper ram
• Closed-loop controlled electric lower ram
• Closed-loop controlled electric fill system ram

RIGIDSIDE PLATE FRAME

• Precision machined and stress relieved assembly
• Precision key-locked upper/lower crowns
• Unitized assembly with support base

REMOVABLE DIE SET ASSEMBLY

• Upper punch plate (floating)
• Die plate (floating)
• Lower punch plate (stationary)
• Core rod plate (floating with die)
• Four post plate guidance

AUTOMATIC DIE FILLING SYSTEM

HMI-BASED CONTROL SYSTEM
